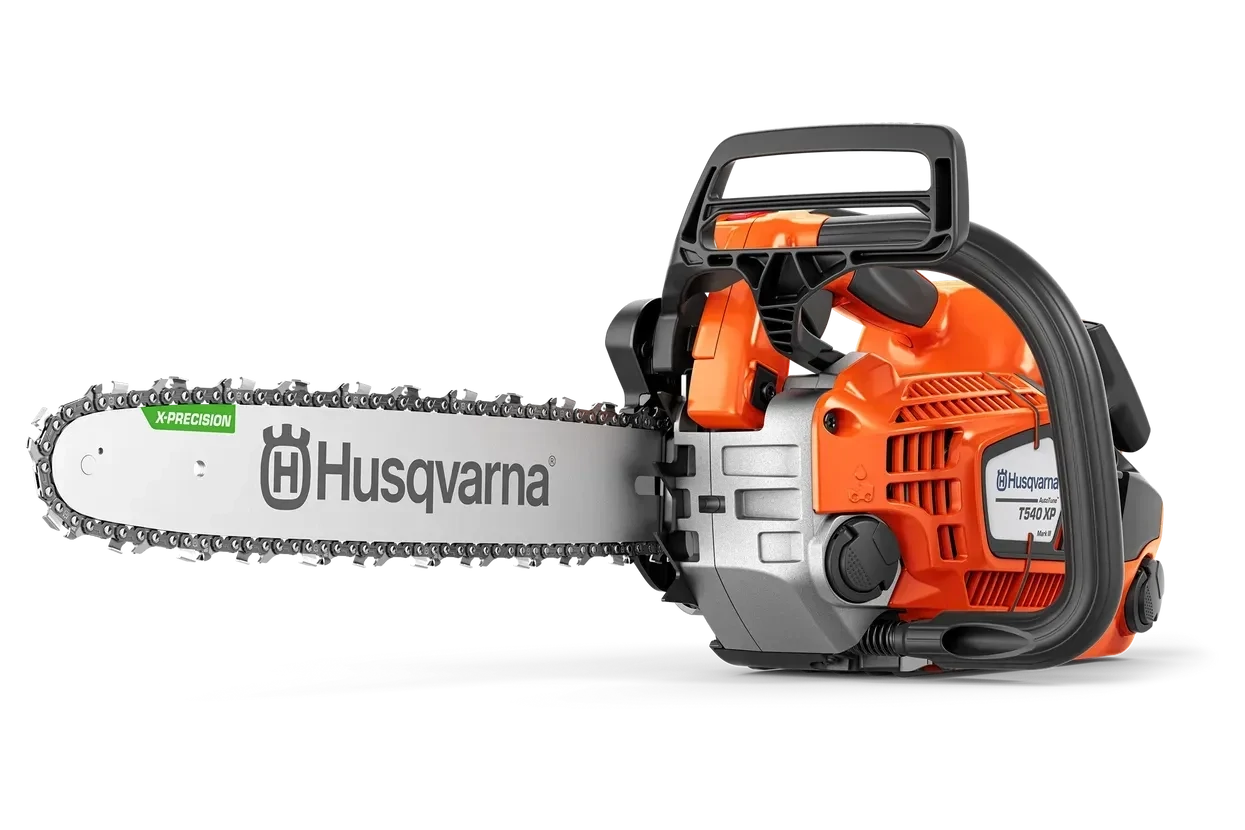

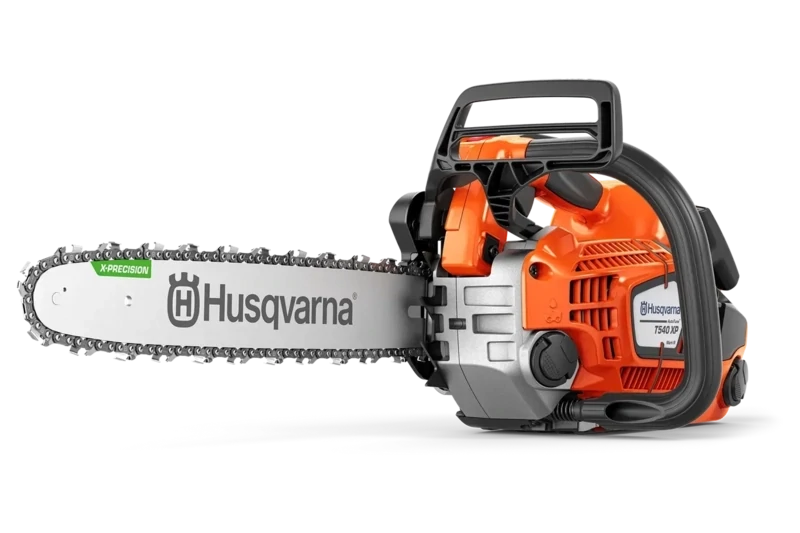

16" SP21G SN .325mini (US/CA)

SKU: 970 51 00‑16

Chain speed at max power

66.4 fts

Cylinder displacement

2.39 cu.inch

Power output

2.6 hp

Torque, max.

1.9 Nm

Torque, max. at rpm

7,500 rpm

Clutch engagement speed (±120)

4,400 rpm

Electrode gap

0.03 in

Idling speed

3,000 rpm

Ignition module air gap

0.01 in

Maximum power speed

10,200 rpm

Oil pump type

Adjustable flow, no flow at idle

Spark Plug

NGK CMR7H

Equipment

Recommended bar length, min

12 in

Pitch

.325" mini

Recommended bar length, max

16 in

Chain type

SP21G

Bar length

40 cm

Bar length (inch)

16 in

Sprocket type

Spur 7

Gauge

.043"

Dimensions

Weight (excl. cutting equipment)

8.4 lbs

Sound and noise

Sound pressure level at operators ear

102 dB(A)

Sound power level, guaranteed (LWA)

112 dB(A)

Sound power level, measured

110 dB(A)

Vibration

Equivalent vibration level (ahv, eq) rear handle

3.4 m/s²

Equivalent vibration level (ahv, eq) front handle

3.5 m/s²

Lubricant

Oil tank volume

0.49 US pint

Lubricant type (Engine)

Husqvarna 2 stroke or equiv. at 50:1
