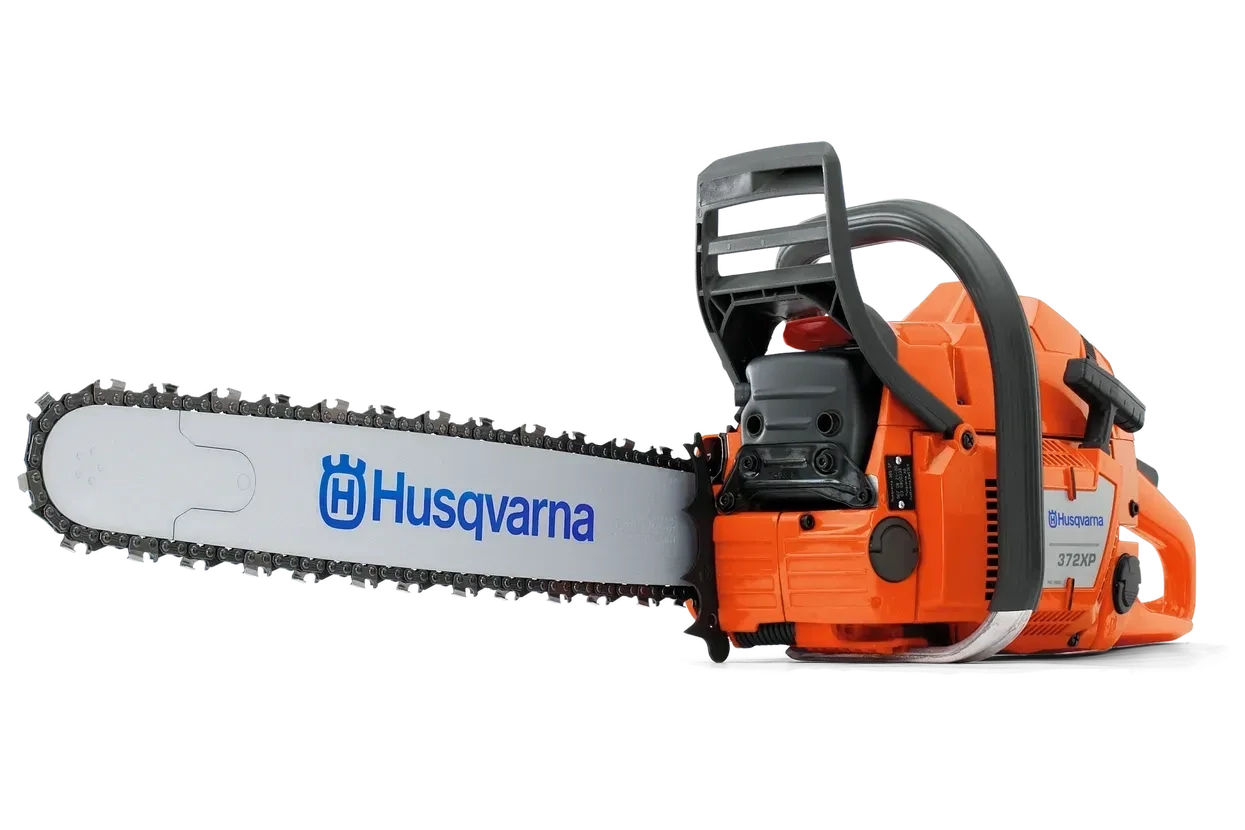

Engine

24" Bar, .3/8" Pitch, .050" Gauge

SKU: 965 96 83‑11

Chain speed at max power

74.5 fts

Cylinder displacement

4.31 cu.inch

Power output

5.5 hp

Torque, max.

3.8 Nm

Torque, max. at rpm

6,600 rpm

Clutch engagement speed (±120)

3,900 rpm

Electrode gap

0 in

Idling speed

2,700 rpm

Ignition module air gap

0 in

Maximum power speed

10,200 rpm

Oil pump capacity, max

20 ml/min

Oil pump capacity, min

4 ml/min

Oil pump type

Automatic

Spark Plug

Champion RCJ7Y, NGK BPMR7A

Equipment

Recommended bar length, min

16 in

Pitch

3/8"

Recommended bar length, max

28 in

Chain type

H42

Bar length

60 cm

Bar length (inch)

24 in

Sprocket type

Rim 7

Gauge

Dimensions

Weight (excl. cutting equipment)

14.6 lbs

Sound and noise

Sound pressure level at operators ear

110 dB(A)

Sound power level, guaranteed (LWA)

119 dB(A)

Sound power level, measured

118 dB(A)

Vibration

Equivalent vibration level (ahv, eq) rear handle

8 m/s²

Equivalent vibration level (ahv, eq) front handle

5.7 m/s²

Lubricant

Oil tank volume

0.89 US pint

Lubricant type (Engine)

Husqvarna 2 stroke or equiv. at 50:1

Emission

Exhaust emissions (CO2 EU V)

742 g/kWh
